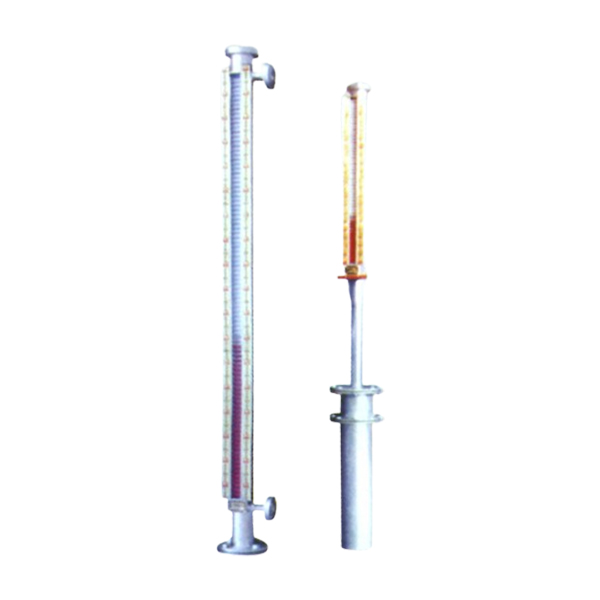

YF型磁性液位計產品系列是我公司采用專利技術新型的非接觸性現場液位檢測儀表，較傳統的管式液位計和各種平板液位計，具有如下特征：1．界面清晰、顯示靈敏、從根本上解決了結垢現象對液位計顯示的影響，并且準確反映液位； 2．耐壓、耐溫、耐腐蝕、尤適用于易燃，易爆、有毒、有污染的介質場合； 3．結構合理、安全方便。重量小、量程大、通用性強； 4．可以通過電路傳送到遠距離控制和檢測的目的。
YF magnetic level iS a new-type non-contact field level-measuring device developped in our company by adopting patent technology.It has the following advantages over the traditional tubular type level gauges and various kinds of flat type level gauges：1．Having clear interface and sensitive display，having eradicated encrustatlon phenomenon affecting level indication，therefore．a(chǎn)ble tO indicare the level exactly．2．Resistant tO pressure，heat and corrosion,especially suitable for measnfing the level Of inflammable， explosive，toxic or poiluting medium．3．Rational in structure，easy to mount，eith 1ight weiqht．wide ranqe of measuring and high universality．4．Marking remote control and measurement possible by remote signaling hrough circuit．
主要技術指標 Main technical parameters
YFC1-普通型 YFC1 Conventional type | |
精度\Accuracy | ±8mm |
測量范圍\Measuarement range | 500-8000mm |
適用介質\Medium | 淡水、燃油、滑油、柴油等 F.W.,F.O,L.O,D.O.,etc. |
介質比量 Specific gravity of medium | ≥0.6/cm^3 |
Z高工作壓力 | 0.2Mpa |
實驗壓力\Test pressure | 0.3Mpa |
工作介質溫度 Temperature of working medium | -17℃~+80℃ |
工作介質粘度 Visosity of working medium | ≤0.02Pa.s |
連接法蘭標準 Connecting faange standard | 16020 GB2506-89 |
公稱長度允差 Tolerance of nominal length | ≤1/1000 |
主要材料\Main material | 1Cr18Ni9Ti |
放泄形式\Drain type | 放泄球閥或放泄螺塞 Drain ball valve or drain plug |
————————————————————————————————————————————————————————
YFC2-夾套型 YFC2 Jacket | |
精度\Accuracy | ±8mm |
測量范圍\Measuarement range | 500-8000mm |
適用介質\Medium | 淡水、燃油、滑油、柴油等 F.W.,F.O,L.O,D.O.,etc. |
介質比量 Specific gravity of medium | ≥0.6/cm^3 |
Z高工作壓力 | 0.2Mpa |
實驗壓力\Test pressure | 0.3Mpa |
蒸汽工作壓力 Working pressure of steam | 0.7Mpa |
工作介質溫度 Temperature of working medium | ≤300℃ |
工作介質粘度 Visosity of working medium | ≤0.02Pa.s |
連接法蘭標準 Connecting faange standard | 16020 GB2506-89 |
公稱長度允差 | ≤1/1000 |
蒸汽接頭尺寸 Steam joint size | M16X1.5,G1/2" |
主要材料\Main material | 1Cr18Ni9Ti |
放泄形式\Drain type | 放泄球閥或放泄螺塞 Drain ball valve or drain plug |
